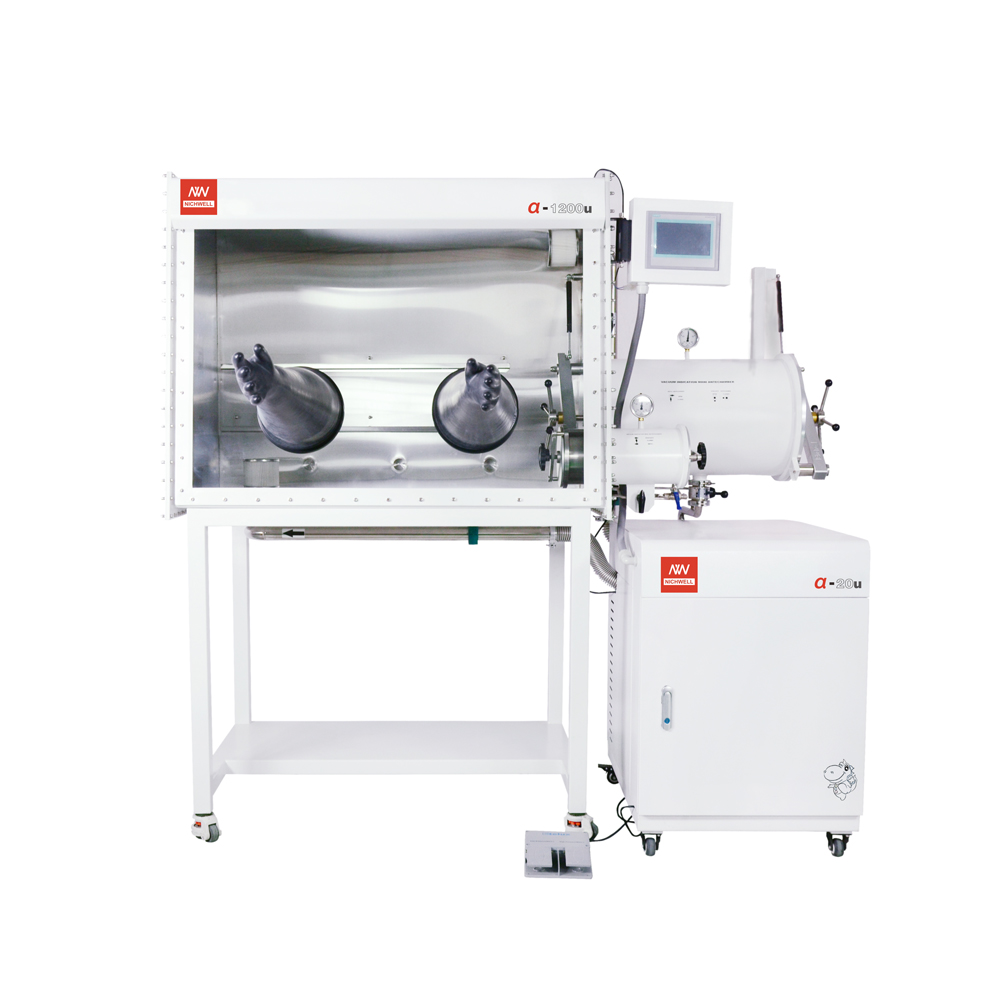

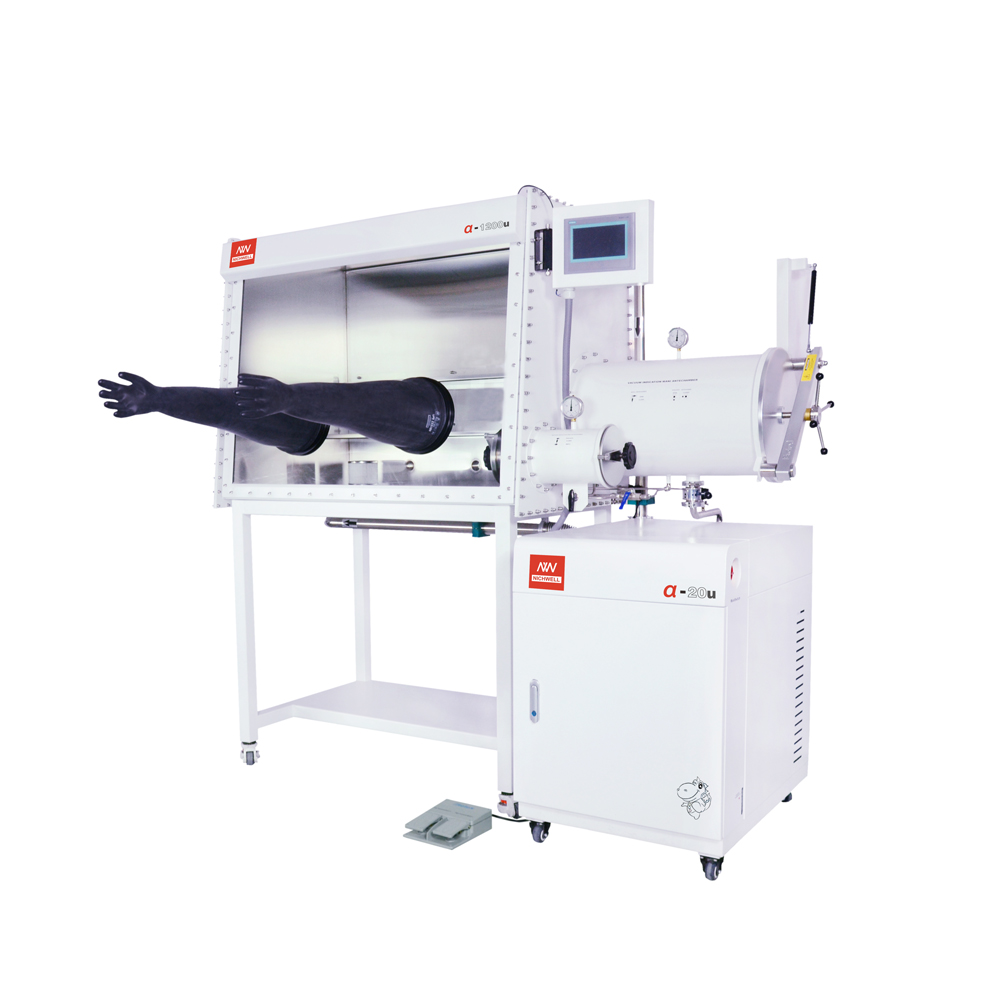

α-1200U Separated Inert Vacuum Controlled Atmospheres Glovebox

Call for Price

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

This is Section with Sidebar Product Layout which you can choose in Product Layout option. You can assign additional content in Sidebar inside Custom code areas. We use CE shortcode in area near button. Read docs (check link in end of product description). We also assign additional tab with Woocommerce Custom tab plugin and place there CE list shortcode

Standard models of gloveboxes are complete standalone systems integrated with entire functional components. They are able to create an inert environment with less than 1 ppm of H2O and O2. The systems are modulated with antechambers, removable windows, adjustable trays, lighting units, adjustable shelves, and gloves, which meet most of the operational needs in the glovebox. The systems are made of welded stainless steel and are equipped with highest-quality components. We also provide optional components to meet your special requirements. The standard models include a series of glovebox chamber lengths including 1200, 1500, 1800, and 2400 mm. We also take custom-built orders according to your needs.

Key Features

  • Glovebox with all-welded stainless steel design
  • All stainless steel pipework
  • Removable front window as an entry for large equipment
  • Purifier regeneration frequency once per year
  • Automatic antechamber control
  • Main antechamber plus mini antechamber
  • Vacuum pump for antechambers
  • Oxygen Analyzer and Moisture Analyzer
  • Auto purge function
  • User friendly and simple operation: Color LCD touch panel and PLC controller
  • Energy-Save mode, automatically reducing power consumption by up to 90% during idle periods
  • Automatic regenerable H2O/O2 purifier
  • Attainable purity O22O
  • Industry leading low leak rate of
  • Stainless steel encapsulated blower with frequency converter
  • Circulation capacity more than 84 m3/h (50 cfm) at ΔP = 60 mbar (60 Hz)
  • Compatible with world-wide voltage standards
  • Integrated high vacuum feedthrough
  • Conform to CE
  • One year limited warranty, and lifetime technical support

Typical applications

Create oxygen-free and moisture-free environment for organometallic chemistry, organic synthesis, hydrophilic chemical handling, medical devices, electronic component handling, lithium battery handling, solar cell assembly, hemoglobin and metabolic research, catalyst handling, medicine synthesis, nuclear industry, membrane of organic EL preparation, etc.

Specification

Chamber Capacity Approximately 28.2 cu. F.t or 0.8 m3
Overall Dimensions 78.7″ L x 31.5″ W x 74.8″ H, or 2000 mm L x 800 mm W x 1900 mm H
Interior Chamber Dimensions 47.2” L x 29.5” W x 35.4” L, or 1200 mm L x 750 mm W x 900 mm H
Inclined Front Window Dimensions 44” L x 33” W, or 1120 mm L x 840 mm W
Glove Port Takform Dimensions 8.6” or 220 mm in diameter, O-ring sealed
Butyl Rubber Gloves Standard 0.4 mm in thickness, and 0.8 mm upon request
HEPA Filters Inlet and outlet filters eliminate particles with the size >0.3 μm
Leakage Rate Typically
Gas Purification System Automated removal of H2O and O2 down to
Rotary Vane Vacuum Pump Rate at 7.0 CFM or 12 m3/h with pressure down to 2 x 10-3 mbar
Circulation Flow Rate 47 CFM or 80 m3/h
Main Antechamber 14.2”(Φ) x 23.6” (L), or 360 mm (Φ) x 600 mm (L), with pressure down to 1 x 10-2 mbar
Mini Antechamber 5.9” (Φ)x 13” (L), or 150 mm (Φ) x 330 mm (L), with pressure down to 1 x 10-2 mbar
O2-Analyzer Measurement Range 0 to 1000 ppm (V)
H2O-Analyzer Measurement Range 0 to 1000 ppm (V)
Compliance UL, ISO9001, and CE
Warranty One year limited warranty, and lifetime technical support
