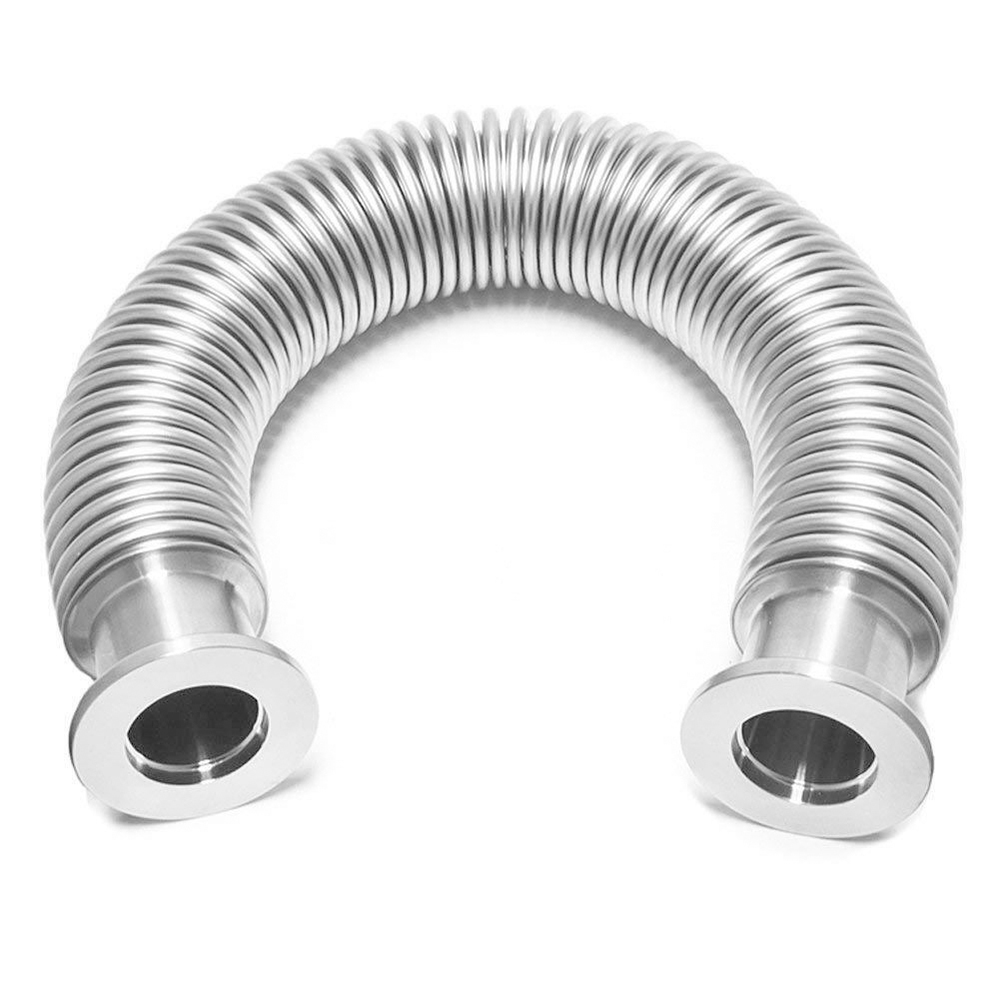

3 PCS KF 25 (NW 25) Flange Vacuum Bellow,Stainless Steel Vacuum Fitting, 10″, 250mm
100 in stock
KF (also referred to as NW) assemblies consist of two Flanges, a Center-Ring and an aluminum Clamp. Clamps are assembled with wing nuts to insure ease of use over time without tools. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the O-Ring, which is held in place by a metal centering ring, to generate the vacuum seal.
The KF Vacuum Hose Couplings are available in the following sizes: NW 16, NW 25, NW 40, and NW 50.
The KF 25, NW 25 Vacuum Hoses are available in the following lengths: 250 mm, 500 mm, 750 mm, 1000 mm, 1500 mm, and 2000 mm.
The Flexible KF-25 Hose Couplings (Also known as Flexible Bellows) are made out of 304 Stainless Steel.
- A: 1.57 in / 40 mm
- B: 9.84 in / 250 mm
- 0.2 mm wall
Labideal Vacuum bellows hose ss, www.labideal.com
Labideal.com provides all kinds of vacuum bellows hose, KF16, KF25, KF40, KF50, ISO -160, ISO -125, ISO-100, ISO-80, ISO-63.
