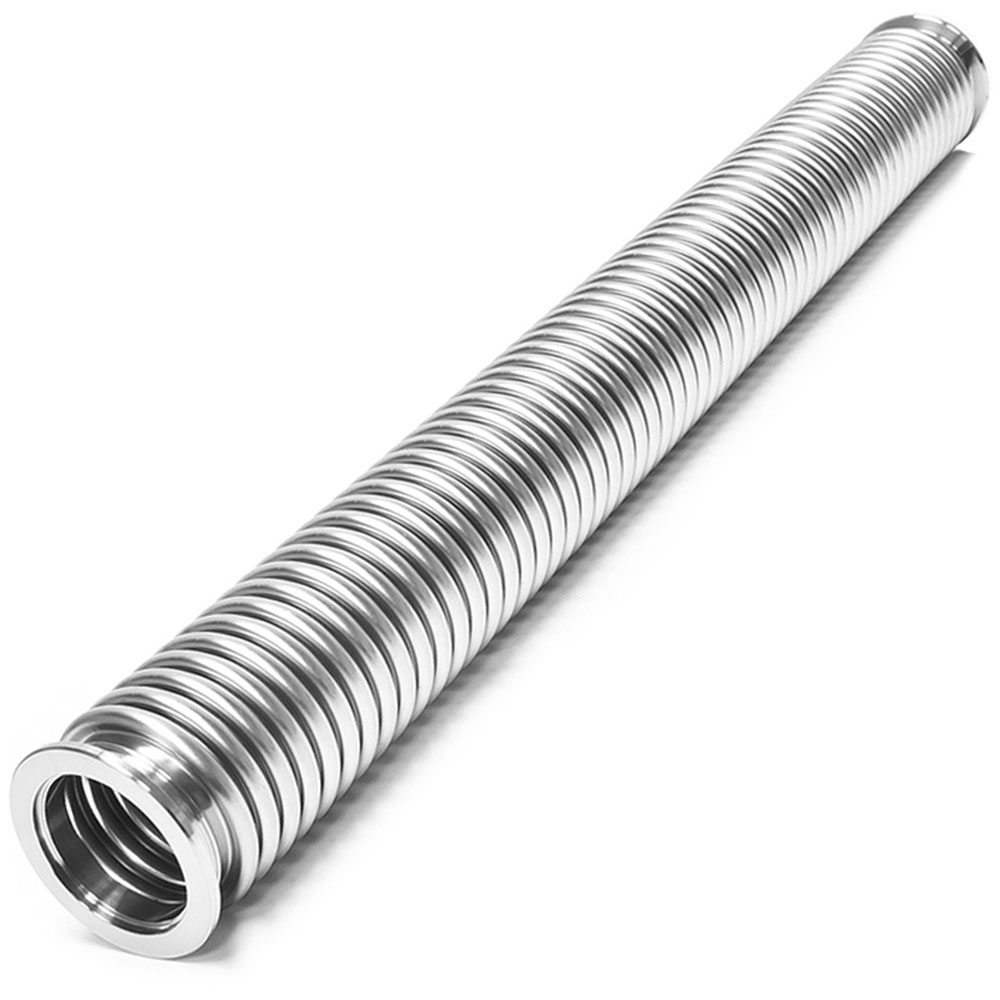

KF 25 (NW 25) Flange Vacuum Bellows Hose,Stainless Steel Vacuum Fitting, 60″, 1500mm
1000 in stock
KF (also referred to as NW) assemblies consist of two Flanges, a Center-Ring and an aluminum Clamp. Clamps are assembled with wing nuts to insure ease of use over time without tools. A uniform application of pressure on the clamp insures a vacuum seal. The mating flange surfaces compress the O-Ring, which is held in place by a metal centering ring, to generate the vacuum seal.
The KF Vacuum Hose Couplings are available in the following sizes: NW 16, NW 25, NW 40, and NW 50.
The KF 25, NW 25 Vacuum Hoses are available in the following lengths: 250 mm, 500 mm, 750 mm, 1000 mm, 1500 mm, and 2000 mm.
The Flexible KF-25 Hose Couplings (Also known as Flexible Bellows) are made out of 304 Stainless Steel.
- A: 1.57 in / 40 mm
- B: 59.05 in / 750 mm
- 0.2 mm wall
Specification: KF 25 (NW 25) Flange Vacuum Bellows Hose,Stainless Steel Vacuum Fitting, 60″, 1500mm
100, 1000, 1200, 150, 1500, 200, 2000, 250, 2500, 300, 3000, 500, 800
