CF Conflat Fittings

CF-style vacuum flanges and fittings are the standard for ultrahigh vacuum (UHV) applications. Also know as ConFlat flanges, they use a copper flat gasket placed between two knife edges to provide an extremely leak-tight vacuum seal. Mating flanges have identical profiles, i.e., they are sexless, eliminating the need to store two types or worry about compatibility. Made with very high purity stainless steel and meticulous cleaning procedures, Series 88 CF components are suitable for use in the ultrahigh vacuum applications down to 10-13 Torr pressure and in temperatures from -196° to 500°C. The material characteristics of the flanges, seals, screws, and nuts are selected to provide high performance throughout a wide temperature range. Rotatable and nonrotatable flanges in sizes from mini 1-1/3 to 4-5/8 inches are available with several bore sizes to fit a wide range of vacuum tube diameters.

Filter

Showing 1–12 of 18 results

Added to wishlistRemoved from wishlist 0
Add to compare
- 23%

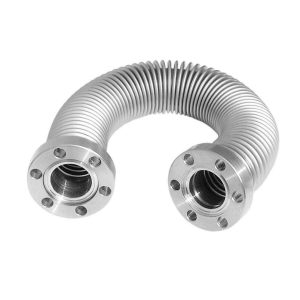

Specifications: Conflat Flange (CF) Flexible Coupling, Stainless Steel CF Flange Size: CF 3-3/8 inches, 9.84 inch Common Dimensions: Flange Size OD = 3.365" (L) Free Length for your choice: 250mm / 9.84" Application: Vacuum Equipment Package Contains: 1 PC Conflat Flange (CF) Flexible Coupling
$259.99 $199.99
Added to wishlistRemoved from wishlist 0
Add to compare
- 13%

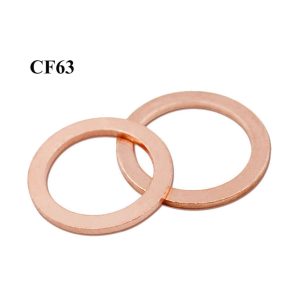

Product description OFHC Copper Gaskets for CF Flanges We manufacture a full range of OFHC Copper and elastomeric fluorocarbon gaskets for CF flanges. Metal gaskets are impermeable to gases and withstand moderately high temperatures indefinitely. The CF flange is the most widely used flange type for high vacuum and UHV applications. These flanges must be the same outer dimension. Many gauges, instruments, accessories and feedthroughs are available on this flange system.
$99.99 $86.99
Added to wishlistRemoved from wishlist 0
Add to compare
- 41%
Flange Size: KF50, Clamp Material: Aluminum
$33.99 $19.99
Added to wishlistRemoved from wishlist 0
Add to compare
- 87%
Flange Size: KF10, Clamp Material: 304 Stainless Steel
$29.99 $3.99
Added to wishlistRemoved from wishlist 0
Add to compare
- 84%
Flange Size: KF16, Clamp Material: 304 Stainless Steel
$30.99 $4.99
